KDK MGX100K/MGX150K Pipe Hood
KDK MGX Pipe Hood with Insect Net (MGX100K & MGX150K)
The KDK MGX pipe hood is designed to protect duct inlet openings from rain, debris, and insects while allowing smooth airflow. Available in two sizes—4″ (MGX100K) and 6″ (MGX150K)—it’s ideal for residential and commercial ducted ventilation systems in Singapore.
Key Features
- SUS 304 stainless steel body (0.5 mm thick) with metallic silver epoxy coating — highly durable and corrosion-resistant
- Downward hood & slatted design — blocks rain, wind, and drips from entering ductwork
- 2.5 × 2.5 mm insect net — effectively prevents entry of small insects and debris
- Spring-clip duct adapter — easy to install onto Ø 100 mm or Ø 150 mm ducts
- Recommended for intake use — protects duct openings while allowing air intake

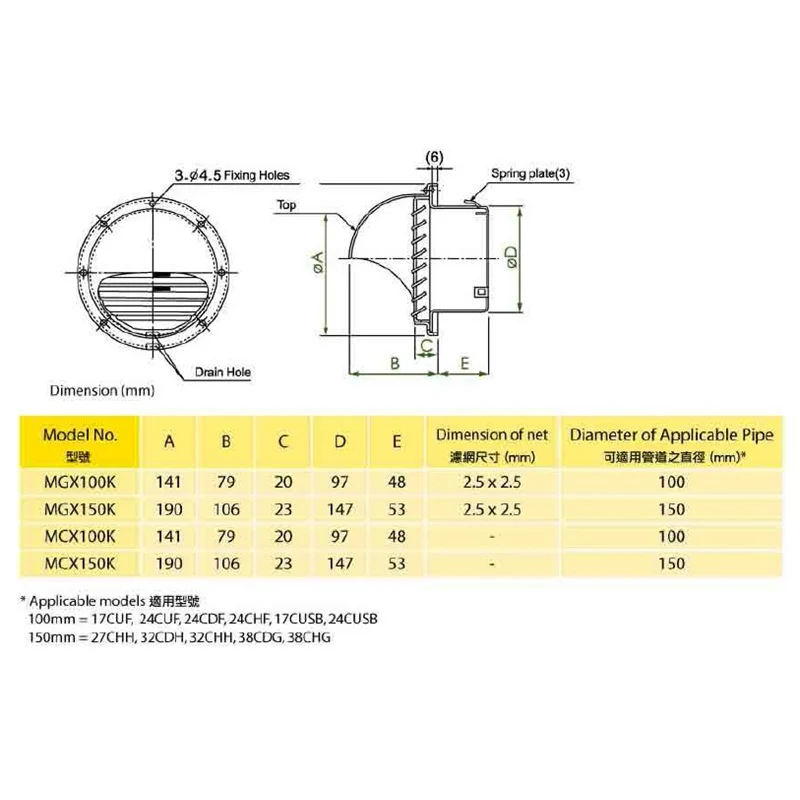

Available Models & Sizes
| Model | Applicable Duct Ø | Outer Ø | Height |
|---|---|---|---|
| MGX100K | Ø 100 mm (4″) | Ø 142 mm | ≈ 97 mm |
| MGX150K | Ø 150 mm (6″) | Ø 190 mm | ≈ 113 mm |
Warranty & Service (Singapore)
- 1-year local warranty against material defects
- Includes parts and labour via authorised service centres
- Warranty begins from the date of purchase — retain your receipt
Why Choose the MGX?
The MGX pipe hood is a compact and effective solution for safeguarding duct openings. Its stainless steel build, insect-proof net, and sturdy installation design ensure reliable performance and long-lasting protection in Singapore’s humid climate.
Description
KDK MGX Pipe Hood with Insect Net (MGX100K & MGX150K)
The KDK MGX pipe hood is designed to protect duct inlet openings from rain, debris, and insects while allowing smooth airflow. Available in two sizes—4″ (MGX100K) and 6″ (MGX150K)—it’s ideal for residential and commercial ducted ventilation systems in Singapore.
Key Features
- SUS 304 stainless steel body (0.5 mm thick) with metallic silver epoxy coating — highly durable and corrosion-resistant
- Downward hood & slatted design — blocks rain, wind, and drips from entering ductwork
- 2.5 × 2.5 mm insect net — effectively prevents entry of small insects and debris
- Spring-clip duct adapter — easy to install onto Ø 100 mm or Ø 150 mm ducts
- Recommended for intake use — protects duct openings while allowing air intake
Available Models & Sizes
| Model | Applicable Duct Ø | Outer Ø | Height |
|---|---|---|---|
| MGX100K | Ø 100 mm (4″) | Ø 142 mm | ≈ 97 mm |
| MGX150K | Ø 150 mm (6″) | Ø 190 mm | ≈ 113 mm |
Warranty & Service (Singapore)
- 1-year local warranty against material defects
- Includes parts and labour via authorised service centres
- Warranty begins from the date of purchase — retain your receipt
Why Choose the MGX?
The MGX pipe hood is a compact and effective solution for safeguarding duct openings. Its stainless steel build, insect-proof net, and sturdy installation design ensure reliable performance and long-lasting protection in Singapore’s humid climate.
