KDK 35GSC Ventilating Fan
KDK 35GSC 35 cm (14″) Industrial High‑Pressure Ventilating Fan
Engineered for demanding environments like commercial kitchens, workshops, and warehouses, the KDK 35GSC delivers powerful, high-pressure airflow and robust durability in a compact form—built to handle tough Singapore conditions.
Key Features
- High-pressure wave-blade & bell-mouth design – ensures smooth airflow under heavy load
- Reversible airflow – switch easily between intake and exhaust modes
- Fully enclosed 4‑pole induction motor (88 W) with thermal fuse – safe and reliable
- Rugged powder-coated steel casing with drain protection to prevent dirt/moisture ingress
- Wide operating range – runs efficiently from −10 °C to +50 °C
- Flexible mounting – suitable for both horizontal and vertical installation

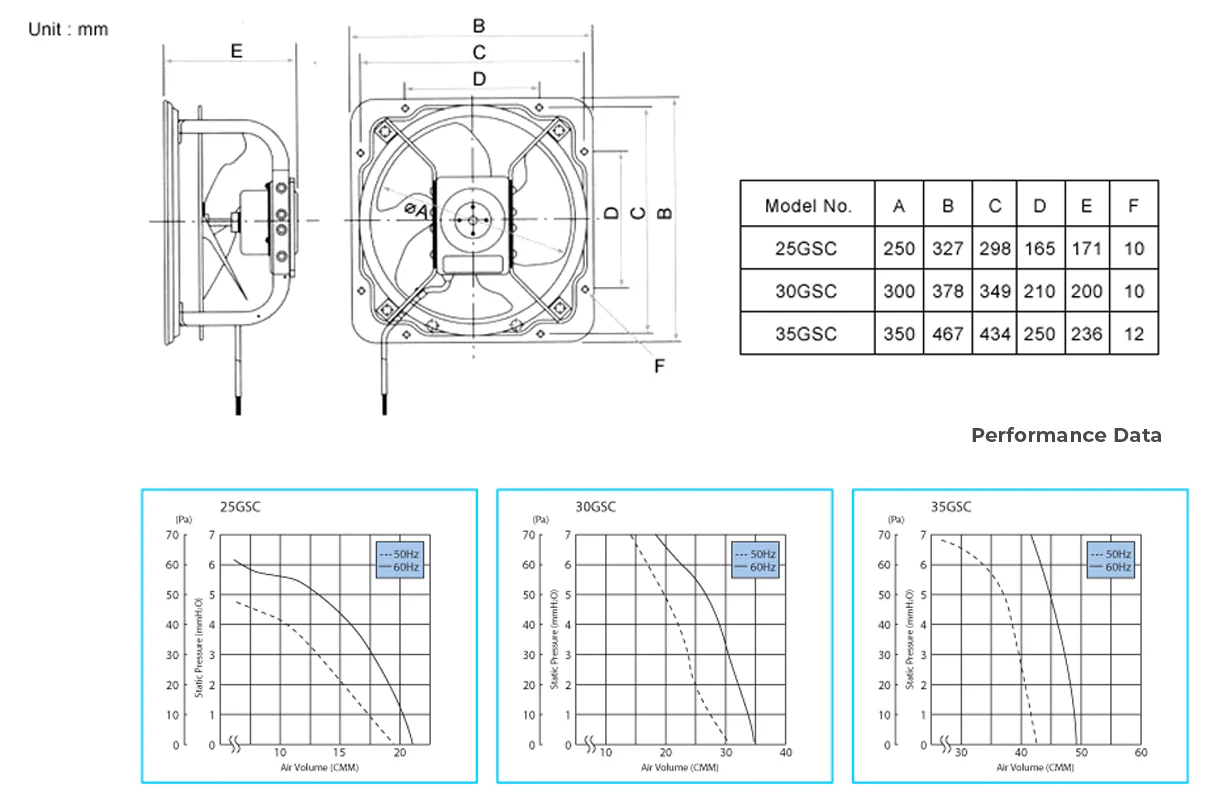

Product Specifications
| Blade Size | 35 cm (14″) |
|---|---|
| Power Consumption | 88 W |
| Speed | 1,420 RPM |
| Airflow | ≈ 1,506 CFM (≈ 2,560 m³/h) |
| Noise Level | ≈ 44 dB(A) |
| Weight | ≈ 10.5 kg |
| Voltage/Frequency | 240 V / 50 Hz |
| Mounting | Horizontal or vertical |
Warranty & Service (Singapore)
- 1‑year local warranty covering motor and build defects via authorised distributor
- Parts and labour at approved service centres are included
- Warranty valid from date of purchase—retain proof of purchase
Why Choose the 35GSC?
The 35GSC combines high-pressure airflow, reversible operation, and weather-resistant construction for efficient ventilation in challenging settings. Its compact size and robust features make it the top choice for commercial-grade airflow needs in Singapore.
Description
KDK 35GSC 35 cm (14″) Industrial High‑Pressure Ventilating Fan
Engineered for demanding environments like commercial kitchens, workshops, and warehouses, the KDK 35GSC delivers powerful, high-pressure airflow and robust durability in a compact form—built to handle tough Singapore conditions.
Key Features
- High-pressure wave-blade & bell-mouth design – ensures smooth airflow under heavy load
- Reversible airflow – switch easily between intake and exhaust modes
- Fully enclosed 4‑pole induction motor (88 W) with thermal fuse – safe and reliable
- Rugged powder-coated steel casing with drain protection to prevent dirt/moisture ingress
- Wide operating range – runs efficiently from −10 °C to +50 °C
- Flexible mounting – suitable for both horizontal and vertical installation
Product Specifications
| Blade Size | 35 cm (14″) |
|---|---|
| Power Consumption | 88 W |
| Speed | 1,420 RPM |
| Airflow | ≈ 1,506 CFM (≈ 2,560 m³/h) |
| Noise Level | ≈ 44 dB(A) |
| Weight | ≈ 10.5 kg |
| Voltage/Frequency | 240 V / 50 Hz |
| Mounting | Horizontal or vertical |
Warranty & Service (Singapore)
- 1‑year local warranty covering motor and build defects via authorised distributor
- Parts and labour at approved service centres are included
- Warranty valid from date of purchase—retain proof of purchase
Why Choose the 35GSC?
The 35GSC combines high-pressure airflow, reversible operation, and weather-resistant construction for efficient ventilation in challenging settings. Its compact size and robust features make it the top choice for commercial-grade airflow needs in Singapore.
