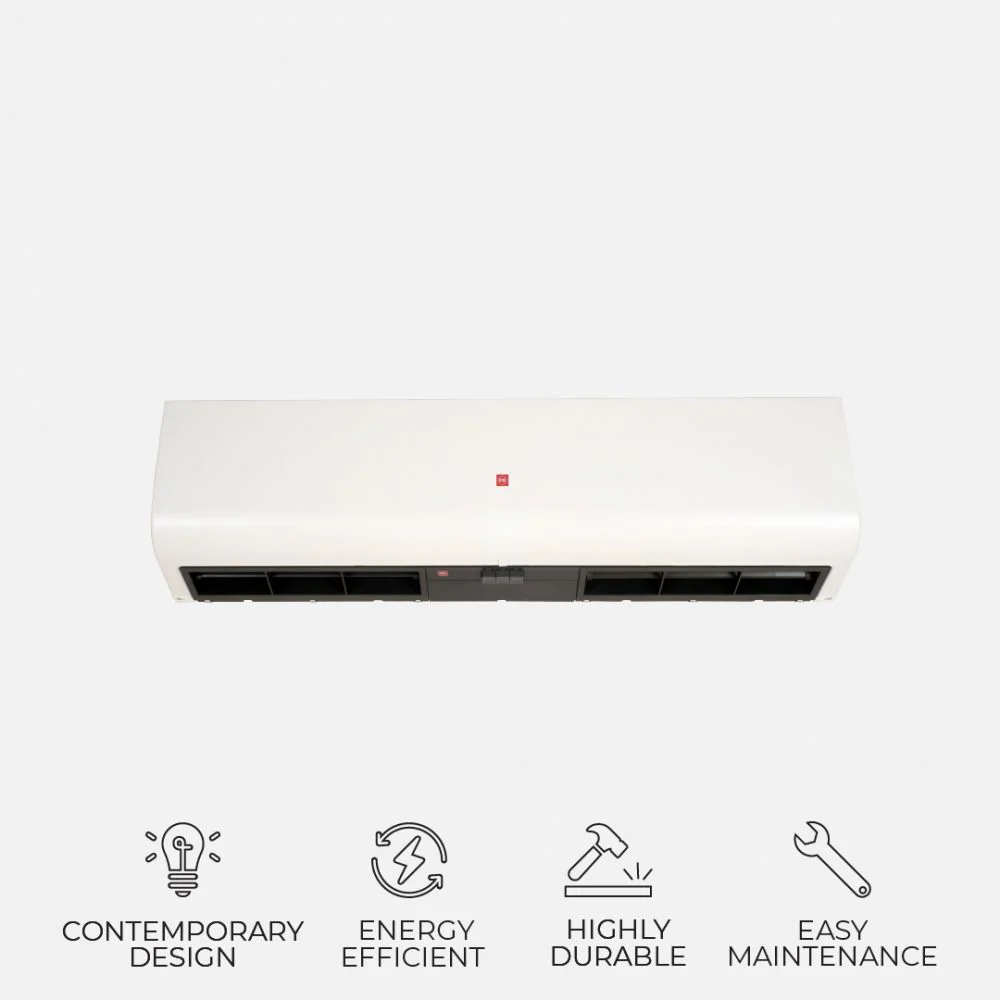

KDK 3009UA 900 mm (3 ft) Air Curtain
KDK 3009UA 900 mm (3 ft) Air Curtain
Keep your indoor environment comfortable and hygienic with the KDK 3009UA. Engineered for shopfronts, retail, F&B outlets, and commercial entrances, it delivers a powerful airflow barrier that seals out insects, dust, and air-conditioned air leakage.
Key Features
- Sirocco fan technology – generates a consistent, wide airflow barrier
- Dual-speed control – High and Low settings for adaptable operation
- Adjustable air deflection louvers – fine-tune the airflow direction
- Sleek ABS casing – modern look and easy to install on wall or ceiling
- Quick-access service panel – simplifies maintenance and inspections
Product Specifications
| Length | 900 mm (3 ft) |
|---|---|
| Effective Coverage Height | ≈ 3 m (10 ft) |
| Airflow | High: 1,150 m³/h (677 CFM) Low: 960 m³/h (565 CFM) |
| Power Consumption | High: 86 W • Low: 80 W |
| Current Draw | High: 0.37 A • Low: 0.35 A |
| Outlet Velocity | High: 10.5 m/s • Low: 9.0 m/s |
| Noise Level | High: 50.5 dB(A) • Low: 47.5 dB(A) |
| Weight | ≈ 12 kg |
| Voltage / Frequency | 220–240 V • 50 Hz |
Warranty & Service (Singapore)
- 1‑year local warranty covering motor and manufacturing defects
- Parts and labour supported through authorised KDK service centres
- Please retain your proof of purchase to validate the warranty
Why Choose the 3009UA?
This compact 3‑ft unit offers a high-velocity airflow shield that effectively protects your indoor space from dust, insects, and energy loss. With user-adjustable airflow, durable build, and easy installation, it’s a smart and reliable choice for Singapore commercial spaces.
Description
KDK 3009UA 900 mm (3 ft) Air Curtain
Keep your indoor environment comfortable and hygienic with the KDK 3009UA. Engineered for shopfronts, retail, F&B outlets, and commercial entrances, it delivers a powerful airflow barrier that seals out insects, dust, and air-conditioned air leakage.
Key Features
- Sirocco fan technology – generates a consistent, wide airflow barrier
- Dual-speed control – High and Low settings for adaptable operation
- Adjustable air deflection louvers – fine-tune the airflow direction
- Sleek ABS casing – modern look and easy to install on wall or ceiling
- Quick-access service panel – simplifies maintenance and inspections
Product Specifications
| Length | 900 mm (3 ft) |
|---|---|
| Effective Coverage Height | ≈ 3 m (10 ft) |
| Airflow | High: 1,150 m³/h (677 CFM) Low: 960 m³/h (565 CFM) |
| Power Consumption | High: 86 W • Low: 80 W |
| Current Draw | High: 0.37 A • Low: 0.35 A |
| Outlet Velocity | High: 10.5 m/s • Low: 9.0 m/s |
| Noise Level | High: 50.5 dB(A) • Low: 47.5 dB(A) |
| Weight | ≈ 12 kg |
| Voltage / Frequency | 220–240 V • 50 Hz |
Warranty & Service (Singapore)
- 1‑year local warranty covering motor and manufacturing defects
- Parts and labour supported through authorised KDK service centres
- Please retain your proof of purchase to validate the warranty
Why Choose the 3009UA?
This compact 3‑ft unit offers a high-velocity airflow shield that effectively protects your indoor space from dust, insects, and energy loss. With user-adjustable airflow, durable build, and easy installation, it’s a smart and reliable choice for Singapore commercial spaces.
