KDK 20WUD Ventilation Fan
KDK 20WUD 20 cm (8″) Window-Mounted Ventilating Fan
Compact and practical, the KDK 20WUD is perfect for bathrooms, kitchens, or utility rooms. It mounts directly into glass (3–7 mm thick) and comes with a pull‑cord shutter, powerful condenser motor, and IPX4 rating for peace of mind.
Key Features
- Pull‑cord shutter – opens on operation and closes when off to block dust and drafts
- HP condenser motor with thermal fuse – ensures safe and durable performance
- Advanced blade design & lubricated bearings – delivers smooth airflow with low noise
- Glass window fit – ideal for 3–7 mm glass, no wall cutting needed
- IPX4-rated – suitable for external exposure

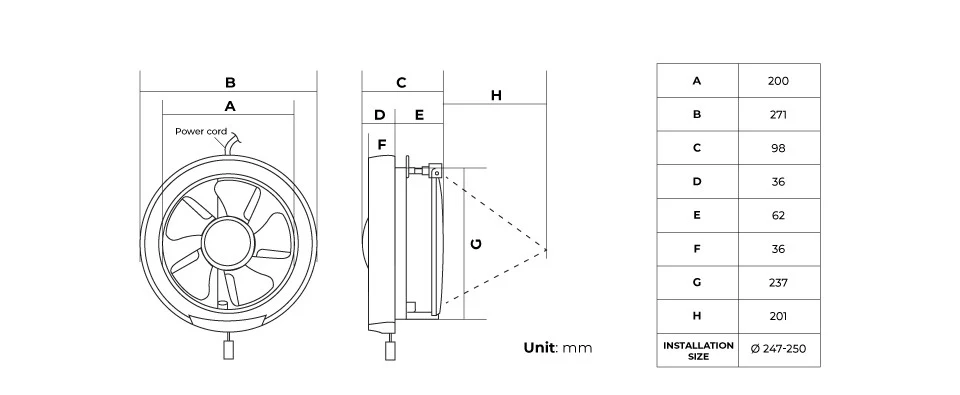

Product Specifications
| Blade Diameter | 20 cm (8″) |
|---|---|
| Power Consumption | 16 W |
| Speed | ≈ 1,042 RPM |
| Air Volume | ≈ 360 m³/h (≈ 212 CFM) |
| Noise Level | ≈ 32 dB(A) |
| Weight | ≈ 1.1 kg |
| Glass Thickness | 3–7 mm |
| Installation Hole | 247–250 mm |
| Voltage/Frequency | 220–240 V / 50 Hz |
Warranty & Service (Singapore)
- 1‑year local warranty covering manufacturing defects
- Parts and labour included via authorized service centers
- Warranty from date of purchase — retain receipt
Why Choose the 20WUD?
Ideal for quick and clean ventilation, the 20WUD fits directly into window glass and features a pull‑cord shutter and quiet high-performance motor. Its IPX4 rating and compact design make it an excellent choice for modern Singapore homes.
